Rental DRI Series: indoor rental led screen with 500x500 cabinet series

---

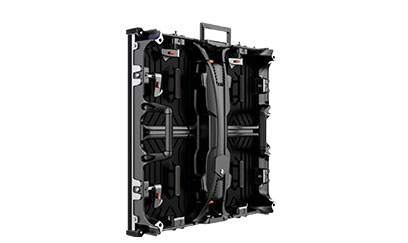

Dotcom DRI series 500*500mm, modular design cabinet with integrated cover box facilitate the power supply, receiving card to be taken off very quickly to do maintenance. Magnetic module and integrated power box enable a double-sided maintenance, both front and rear service is available. The eye-catching feature is that the cabinet spare users from messy cabling as it only need hub board to transmit signals.

---

Feature:

• Ultra slim, ultra light, thickness: 90mm, weight: 7.75kgs.
• Perfect video performance: high contrast ratio, high brightness, high refresh rate, wide view angle.
• Fast installation& maintenance: front & rear maintenance.

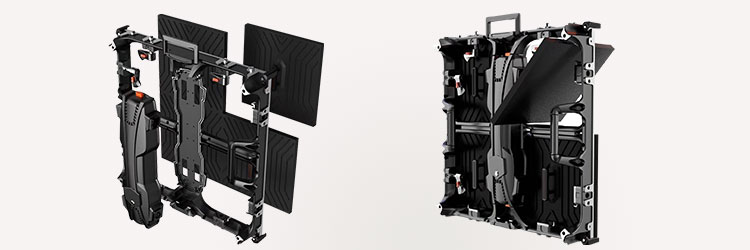

• Modular design: Movable power box/control box.
• Good Protection: optional corner protector for cabinet, optional handle or string rope for module.
• Curved design: inner arc or outer arc both available.

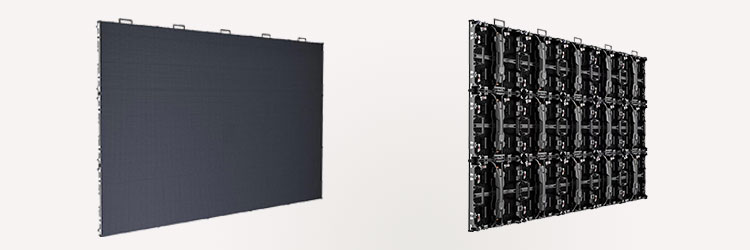

• 500mm and 1000mm panels can be mixed installation.

---

Application:

• TV studio, stage, club, bar, hotel, shopping mall, broadcast, meeting room etc.

---

Pixel Pitch		2.604	2.976	3.91	4.81	Unit
Module Size		250*250	250*250	250*250	250*250	mm
Scan Mode		1/32	1/28	1/16	1/13
Led		SMD1515	SMD2020	SMD2020	SMD2020
Brightness		1000	1000	1000	1000	nit
Cabinet Size(W*H*D)		500*500*90	500*500*90	500*500*90	500*500*90	mm
Cabinet Resolution		192*192	168*168	128*128	104*104	dots
Cabinet Material		Die casting aluminum	Die casting aluminum	Die casting aluminum	Die casting aluminum
Cabinet Weight		7.75	7.75	7.75	7.75	kgs
Maintenance way		Front/Rear Access	Front/Rear Access	Front/Rear Access	Front/Rear Access
Refresh Rate		3840	3840	3840	3840	hz/s
Viewing Angle		160/160	160/160	160/160	160/160	deg
Max/Average Power consumption		600/200	600/200	600/200	600/200	w/㎡
Gray Scale		14-16	14-16	14-16	14-16	bits
Contrast Ratio		`4000：1	`4000：1	`4000：1	`4000：1
IP Grade (Front/Rear)		IP30	IP30	IP30	IP30
