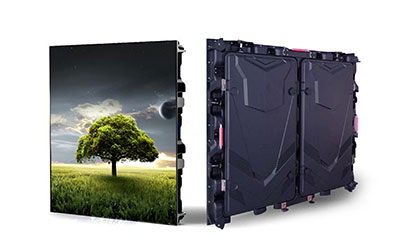

Rental DRQ Series: indoor rental diecasting led screen with 960x960 cabinet series

---

Dotcom DRP series 960*960mm, its die casting magnesium alloy material make it 30% lighter in weight than die casting aluminum cabinet, also can save cost. It is a very high cost performance solution for all standard 320*160mm module. Four fast locks on each cabinet enable its fast and precise installation. It can be applied to both indoor and outdoor, can used for fixed installation or for rental. It is also a multi-function cabinet, by adding rubber cushion and bracket, it can be applied to stadium as perimeter screen.

---

Feature:

• Ultra slim, ultra light; thickness: 100mm, weight: 26kgs, 30% lighter than aluminum die-casting cabinet.
• Perfect video performance: high contrast ratio, high brightness, high refresh rate, wide view angle.

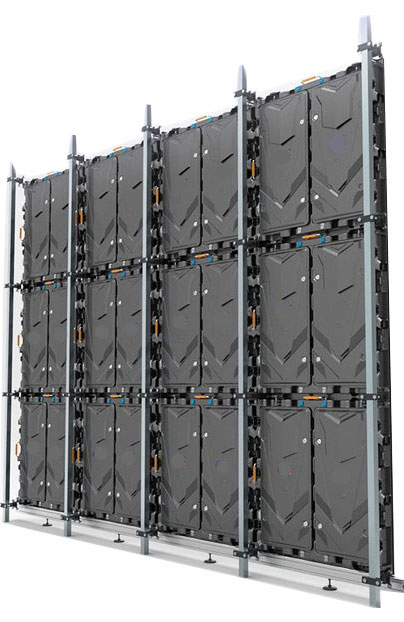

• Fast installation& maintenance: front & rear maintenance, unique fast lock & handle/ pin design for fast installation / maintenance.
• Standard cabinet size: suitable for all 320*160mm standard size modules.
• Multi function: supports multi type installation way, advertising screen& rental screen& stadium screen.

---

Application:

• Shopping mall, stadium, buildings, TV studio, stage, club, bar, hotel, broadcast etc.

---

Specification:

Pixel Pitch		P2.5	P3.076	P4	P5	Unit
Module Size		320*160	320*160	320*160	320*160	mm
Scan Mode		1/32	1/26	1/20	1/16
Led		SMD2020	SMD2020	SMD2020	SMD2020
Brightness		1000	1000	1000	1000	nit
Cabinet Size(W*H*D)		960*960*100mm	960*960*100mm	960*960*100mm	960*960*100mm	mm
Cabinet Resolution		384*384	312*312	240*240	192*192	dots
Cabinet Material		diecasting magnesium alloy	diecasting magnesium alloy	diecasting magnesium alloy	diecasting magnesium alloy
Cabinet Weight		26	26	26	26	kgs
Maintenance way		Front/Rear Access	Front/Rear Access	Front/Rear Access	Front/Rear Access
Refresh Rate		1920/3840	1920/3840	1920/3840	1920/3840	hz/s
Viewing Angle		160/160	160/160	160/160	160/160	deg
Max/Average Power consumption		600/200	600/200	600/200	600/200	w/㎡
Gray Scale		14-16	14-16	14-16	14-16	bits
Contrast Ratio		`4000：1	`4000：1	`4000：1	`4000：1
IP Grade (Front/Rear)		IP30	IP30	IP30	IP30
