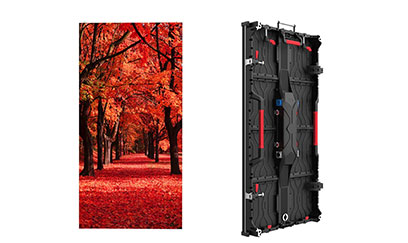

Rental DRT Series: Outdoor rental led screen with diecasting cabinet 500x1000 series

---

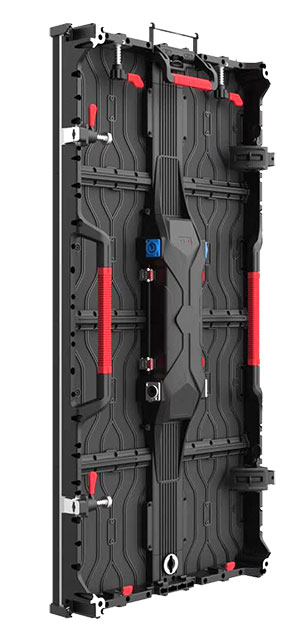

Dotcom DRT series 500*1000mm, modular design cabinet with integrated cover box facilitate the power supply, receiving card to be taken off very quickly to do maintenance. Magnetic module and integrated power box enable a double-sided maintenance, both front and rear service is available. The eye-catching feature is that the cabinet spare users from messy cabling as it only need hub board to transmit signals.

---

Feature:

• Ultra slim, ultra light: thickness: 90mm, weight: 13.6kgs.
• High waterproof-IP65/IP54(front/ rear), highly waterproof.
• Perfect video performance: high contrast ratio, high brightness, high refresh rate, wide view angle.

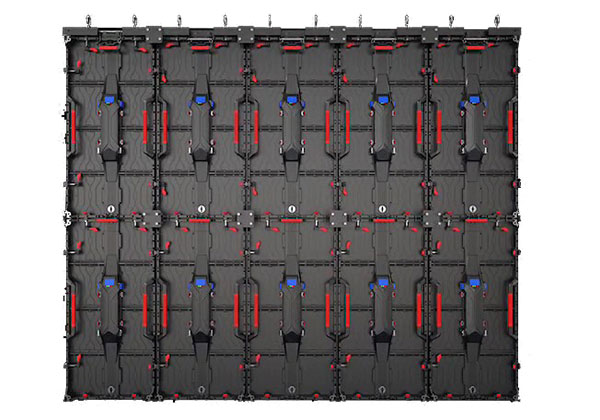

• Fast installation& maintenance: front & rear maintenance
• Modular design: Movable power box/control box.
• Good Protection: optional corner protector for cabinet, optional handle or string rope for module
• Curved design: inner arc or outer arc both available.
• Curved design: inner arc or outer arc both available.

---

Application:

• TV studio, stage, club, bar, hotel, shopping mall, broadcast, meeting room etc.

---

Specification:

Pixel Pitch		2.604	2.976	3.91	4.81	5.95	Unit
Module Size		250*250	250*250	250*250	250*250	250*250	mm
Scan Mode		1/32	1/28	1/16	1/13	1/7
Led		SMD1415	SMD1415	SMD1921	SMD1921	SMD2727
Brightness		3500	3500	4500	4500	5000	nit
Cabinet Size(W*H*D)		500*1000*90	500*1000*90	500*1000*90	500*1000*90	500*1000*90	mm
Cabinet Resolution		192*384	168*336	128*256	104*208	84*168	dots
Cabinet Material		Die casting aluminum	Die casting aluminum	Die casting aluminum	Die casting aluminum	Die casting aluminum
Cabinet Weight		13.6	13.6	13.6	13.6	13.6	kgs
Maintenance way		Front/Rear Access	Front/Rear Access	Front/Rear Access	Front/Rear Access	Front/Rear Access
Refresh Rate		3840	3840	3840	3840	3840	hz/s
Viewing Angle		160/120	160/120	160/120	160/120	160/120	deg
Max/Average Power consumption		1000/350	800/400	680/340	680/340	680/340	w/㎡
Gray Scale		14-16	14-16	14-16	14-16	14-16	bits
Contrast Ratio		`3000：1	`3000：1	`3000：1	`3000：1	`3000：1
IP Grade (Front/Rear)		IP65(Front) /IP54(Rear)	IP65(Front) /IP54(Rear)	IP65(Front) /IP54(Rear)	IP65(Front) /IP54(Rear)	IP65(Front) /IP54(Rear)
