| LED scoreboard parameter: | ||
| Pixel Pitch | P5 | Unit |
| Module Size | 320*160 | mm |
| Scan mode | 1/8 | |
| Led | SMD2727 | |
| Brightness | 5500 | nits |

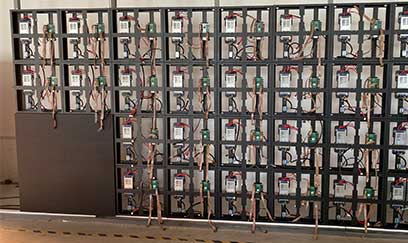

| Cabinet Size(W*H*D) |
960*960*140mm ( customized by modulue size) |
mm |
| Cabinet Resolution | 192*192 | dots |
| Cabinet material | steel/ aluminum | |
| Cabinet Weight | 31 | kgs |
| Maintenance way | Rear Access | |
| Refresh Rate | 1920 | hz/s |
| Viewing Angle | 140/120 | deg |
|
Max Power consumption/ Average Power consumption |
730/510 | w/㎡ |
| Gray Scale | 16bits | |
| Contrast Ratio | `3000：1 | |
| IP Grade | IP54/IP65( Front/ Rear) | |
DOTCOM has a team with innovation, professionalism and strong sense of responsibility, the company’s main products include indoor / outdoor fixed installation led display and rental led display, the products are widely used in advertising media, shopping malls, stage background, stadiums, municipal engineering and other fields. Through a few years’ effort, we have won some markets in the United States, Germany, France, Russia, Turkey, Iran,Dubai, Brazil, Chile, India and Southeast Asia etc.
