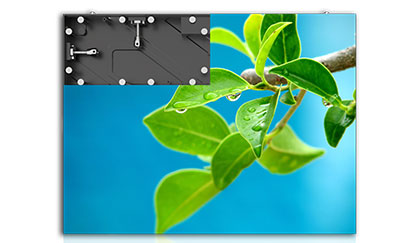

IA Series - indoor led video wall

---

IA series screen are becoming very popular for indoor led screen projects, especially for some smaller pixel pitch from P1.667-P3.076. Besides its light weight, slim and thin features, its nice appearance is also very attractive. The 4:3 cabinet golden ratio designs also makes it stand out among other series.

---

Feature:

• Die casting aluminum cabinet, super slim and light, thickness: 60mm, weight: 10.4& 7.35kgs.

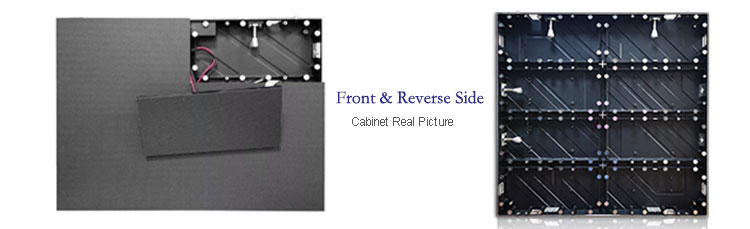

• Fully front access All components are front accessible.
• Fast installation/ Maintenance Fast lock& handle for easy operation.
• Standard cabinet size, suitable for 320*160mm standard size modules,1:1 or 4:3 golden ratio, providing best viewing effect.
• Built-in wiring design for tidy looking and space saving.
• High refresh rate, high contrast, high brightness.
• Support hanging, stacking, wall mounted installation.

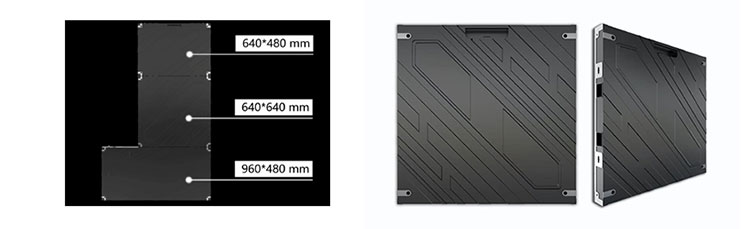

• Customized solution, 640*640mm & 640*480mm& 320*640mm* 960*480mm cabinet size are all available, and could be seamless splicing, which will meet your request of all different size.

---

Application:

• media, government, shopping mall, commercial advertising, buildings, hospital, meeting room, retail store, restaurant, hotel, airport, bus station etc.

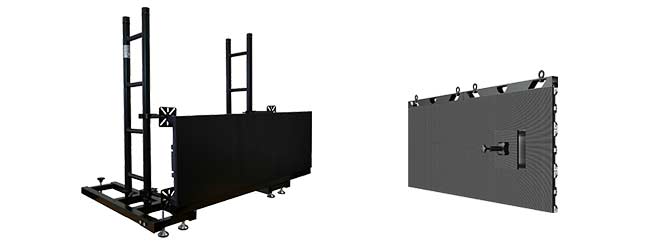

IA Series Other Installations:

---

Installation:

---

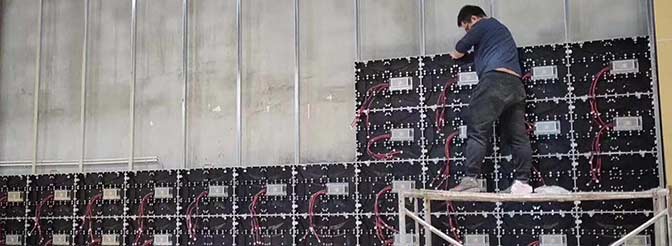

LED Video Wall Field Installation:

---

Specification:

Pixel Pitch		P1.667	P1.86	P2	P2.5	P3.076	P4	P5	Unit
Module Size		320*160	320*160	320*160	320*160	320*160	320*160	320*160	mm
Scan Mode		1/32	1/43	1/40	1/32	1/26	1/20	1/16
Led		SMD1010	SMD1515	SMD1515	SMD2020	SMD2020	SMD2020	SMD2020
Brightness		500	500	500	800	800	800	800	nit
Cabinet Size(W*H*D)		640*640*60mm 640*480*60mm	640*640*60mm 640*480*60mm	640*640*60mm 640*480*60mm	640*640*60mm 640*480*60mm	640*640*60mm 640*480*60mm	640*640*60mm 640*480*60mm	640*640*60mm 640*480*60mm	mm
Cabinet Resolution		384*384 384*288	344*344 344*256	320*320 320*240	256*256 256*192	208*208 208*156	160*160 160*120	128*128 128*96	dots
Cabinet Material		diecasting aluminum	diecasting aluminum	diecasting aluminum	diecasting aluminum	diecasting aluminum	diecasting aluminum	diecasting aluminum
Cabinet Weight		10.4& 7.35	10.4& 7.35	10.4& 7.35	10.4& 7.35	10.4& 7.35	10.4& 7.35	10.4& 7.35	kgs
Maintenance way		Front Access	Front Access	Front Access	Front Access	Front Access	Front Access	Front Access
Refresh Rate		3840	3840	3840	1920/3840	1920/3840	1920/3840	1920/3840	hz/s
Viewing Angle		160/160	160/160	160/160	160/160	160/160	160/160	160/160	deg
Max/Average Power consumption		600/200	600/200	600/200	600/200	600/200	600/200	600/200	w/㎡
Gray Scale		14-16bits	14-16bits	14-16bits	14-16bits	14-16bits	14-16bits	14-16bits	bits
Contrast Ratio		`4000：1	`4000：1	`4000：1	`4000：1	`4000：1	`4000：1	`4000：1
IP Grade (Front/Rear)		IP31	IP31	IP31	IP31	IP31	IP31	IP31
