P2.5/P3 indoor fixed led video wall

---

IF series screen designed with fast lock for quick operation to save labor cost and labor time, and at the same time, the die casting magnesium material makes it more lighter in weight than die casting aluminum material cabinets. What’s more, IF series will be a more cost saving option, which has more flexibility in satisfying client’s different project needs.

---

Indoor led video wall Feature:

• Diecasting magnesium alloy cabinet, Super slim and light.
• Support hanging, stacking, wall mounted.
• High refresh rate, high contrast, high brightness.

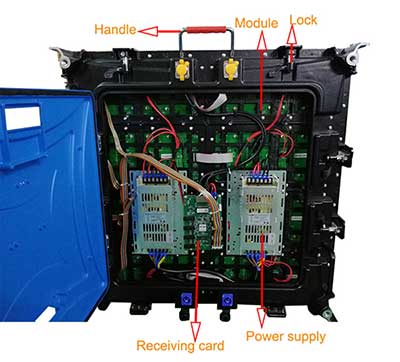

• Fully front access: all components are front accessible.
• Fast installation and maintenance, Fast lock & handle for easy operation.
• Built-in Wiring to make the screen more beautiful, saving space, time and installation.

---

Application:

• Used for high end meeting room, broadcast, TV station, control room, etc.

---

Specification:

Model Name
Pixel Pitch	P2.5	P3.076	Unit
Module Size	320*160	320*160	mm
Scan mode	1/32	1/16
Led	SMD 2020	SMD 2020
Brightness	600	1000	nits

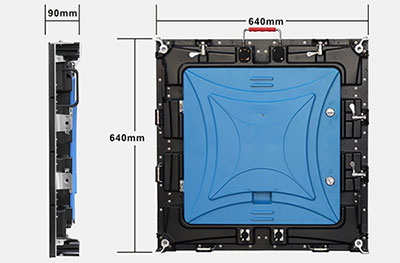

Cabinet Size(W*H*D)	640*640*90	640*640*90	mm
Cabinet Resolution	256*256	208*208	dots
Cabinet material	Die casting aluminum	Die casting aluminum
Cabinet Weight	9	9	kgs
Maintenance way	Rear Access	Rear Access
Refresh Rate	3840	3840	hz/s
Viewing Angle	160/120	160/120	deg
Max Power consumption/ Average Power consumption	680/480	470/330	w/㎡
Gray Scale	16bits	16bits
Contrast Ratio	`4000：1	`4000：1
IP Grade	IP30	IP30

---

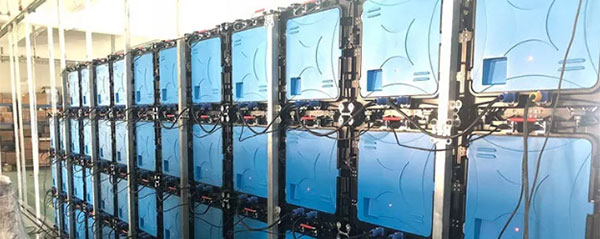

Aging Test:
