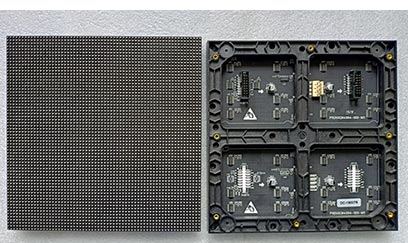

Indoor SMD led display module

Indoor SMD led display module


Indoor SMD P2 ~ P6 led display module:

  • Pixel Pitch: 2 ~ 6 mm
  • Led: SMD2121
  • IP Grade: IP30
  • Refresh Rate: 1920 Hz
  • Brightness: 800 ~ 1000 nits

Feature:

  • High contrast ratio.
  • With double latch ic, provide more vivid image.
  • 140-160 degree viewing angle assure the screen has wider view area.
  • High Gray scale.
Indoor led display module:

Model Name 　 　 　 　 　
Pixel Pitch P2 P2.5 P3 P4 Unit
Module Size 256*128 320*160 192*192 256*128 mm
Module Resolution 128*64 128*64 64*64 64*32 　
Scan mode 1/32 1/32 1/32 1/16 　
Led

SMD1515 Copper Frame

and Copper Wire

 SMD2121

Copper Frame

and Copper Wire

 SMD2121

Copper Frame

and Copper Wire

 SMD2121

Copper Frame

and Copper Wire

 　

Copper Frame

and Copper Wire
Brightness 800 1000 1000 1000 nits
Maintenance way Front Access Front Access Front Access Front Access 　
Refresh Rate 3840 3840 3840 3840 hz/s
Viewing Angle 160/120 160/160 160/120 160/120 deg
Max Power consumption/
Average Power consumption		 800/200 800/200 800/200 800/200 w/㎡
Gray Scale 10-16bits 10-16bits 10-16bits 10-16bits 　
Contrast Ratio `4000：1 `4000：1 `4000：1 `4000：1 　
IP Grade IP30 IP30 IP30 IP30 　

Model Name 　 　 　 　
Pixel Pitch P4 P5 P6 Unit
Module Size 320*160 320*160 192*192 mm
Module Resolution 80*40 64*32 32*32 　
Scan mode 1/20 1/16 1/16 　
Led  SMD 2121 SMD 2121 SMD 2121 　
Brightness 1000 1000 1000 nits
Maintenance way Front Access Front Access Front Access 　
Refresh Rate 1920/3840 1920/3840 1920/3840 hz/s
Viewing Angle 160/120 160/120 160/120 deg
Max Power consumption/
Average Power consumption		 800/200 800/200 800/200 w/㎡
Gray Scale 10-16bits 10-16bits 10-16bits 　
Contrast Ratio `4000：1 `4000：1 `4000：1 　
IP Grade IP30 IP30 IP30 　
