IV Series - indoor led video wall

---

Dotcom IV series 960*960mm, its die casting magnesium alloy material make it 30% lighter in weight than die casting aluminum cabinet, also can save cost. It is a very high cost performance solution for all standard 320*160mm module. Four fast locks on each cabinet enable its fast and precise installation. It can be applied to both indoor and outdoor, can used for fixed installation or for rental.

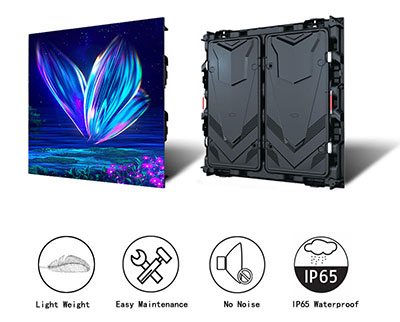

Back without cover

---

Feature:

• Die casting magnesium cabinet, Super slim and light, thickness: 110 mm, weight: 28.5kgs;

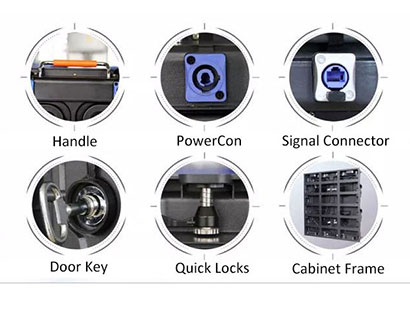

• Fast Installation / Maintenance: Fast lock & handle / pin design for fast installation / maintenance;
• Standard cabinet size: suitable for all 320*160mm standard size modules;
• Perfect video performance: High refresh rate, high contrast, high brightness, wide view angle;
• Multi function: Supports multi type installation, advertising screen& rental screen& stadium screen;

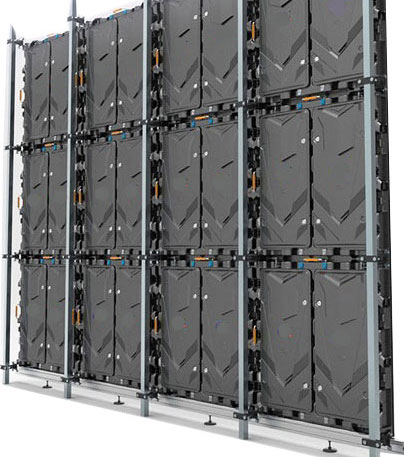

• Support hanging, stacking, wall mounted;

---

Application:

• Media, government, shopping mall, commercial advertising, buildings, hospital, meeting room, retail store, restaurant, hotel, airport, bus station etc.

---

Specification:

Pixel Pitch		P2.5	P3.076	P4	P5	Unit
Module Size		320*160	320*160	320*160	320*160	mm
Scan Mode		1/32	1/26	1/20	1/16
Led		SMD2020	SMD2020	SMD2020	SMD2020
Brightness		800	800	800	800	nit
Cabinet Size(W*H*D)		960*960*110mm	960*960*110mm	960*960*110mm	960*960*110mm	mm
Cabinet Resolution		384*384	312*312	240*240	192*192	dots
Cabinet Material		diecasting magnesium alloy	diecasting magnesium alloy	diecasting magnesium alloy	diecasting magnesium alloy
Cabinet Weight		28.5	28.5	28.5	28.5	kgs
Maintenance way		Front/Rear Access	Front/Rear Access	Front/Rear Access	Front/Rear Access
Refresh Rate		1920/3840	1920/3840	1920/3840	1920/3840	hz/s
Viewing Angle		160/160	160/160	160/160	160/160	deg
Max/Average Power consumption		500/200	500/200	500/200	500/200	w/㎡
Gray Scale		14-16bits	14-16bits	14-16bits	14-16bits	bits
Contrast Ratio		`4000：1	`4000：1	`4000：1	`4000：1
IP Grade (Front/Rear)		IP31	IP31	IP31	IP31

---
