Outdoor SMD 1415 rental P2.97 Full Color Outdoor LED Display

---

We recommend the follow Led display system for your reference according to your requirements: P2.97mm ouytdoor SMD 1415 1R1G1B 250*250mm Full Color LED Display.

---

---

1．LED Module



Dot Pitch（mm）	2.97mm	Size（W×H）	250*250mm
Pixel Point（Dot/	112896dots/m2	Resolution（W×H）	84X84 dots



2．Led Display Specification



Pixel Pitch	2.97mm
Brightness	4200-4500cd/sqm
Brightness Level	0-100%（ by hand/ auto/ software)
View Angle	Horizontal 160 deg Vertical 160 deg
Minimum Viewing distance	3 meters
Gray scale	65536 level
Refresh Rate	>3840hz/s
Driving mode	Dynamic 1/21 scan
Input power frequency	50 or 60hz/s
Input voltage	200-240V
Blind spot rate	<1/10000
Lifetime at 50% brightness	100000 hours
IP Grade	IP65/ IP54( front/ rear)
Operating temperature	.-20℃~60℃
Working humidity	10~90% RH
Power Consumption(Max.)	680W/m2
Power Consumption(Avg.)	340W/m2





1. Screen Configuration



   Module:
   Dimensions(w*h)(mm)	250*250mm	Resolution（W×H）	84*84
   Pixel Pitch(mm)	P2.97	Pixel Density(pixels/㎡)	112896
   Led Lamp	outdoor SMD1415	Pixel configuration	SMD 3 in 1

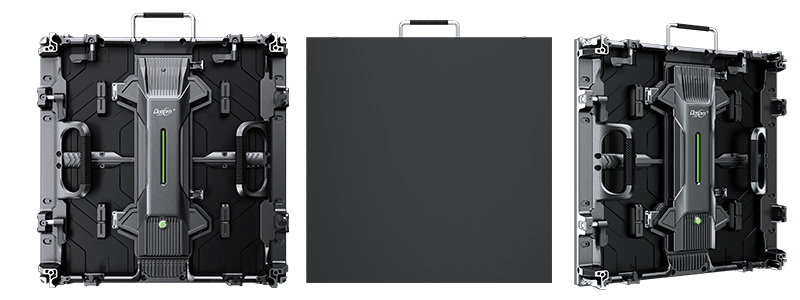

   Cabinet 1
   Dimensions(w*h)(mm)	500*500*75mm	Module Quantity	4
   Resolution（W×H）	168*168	Pixels	28224
   Weight/panels(kgs)	7.5KG	Material	diecasting aluminum

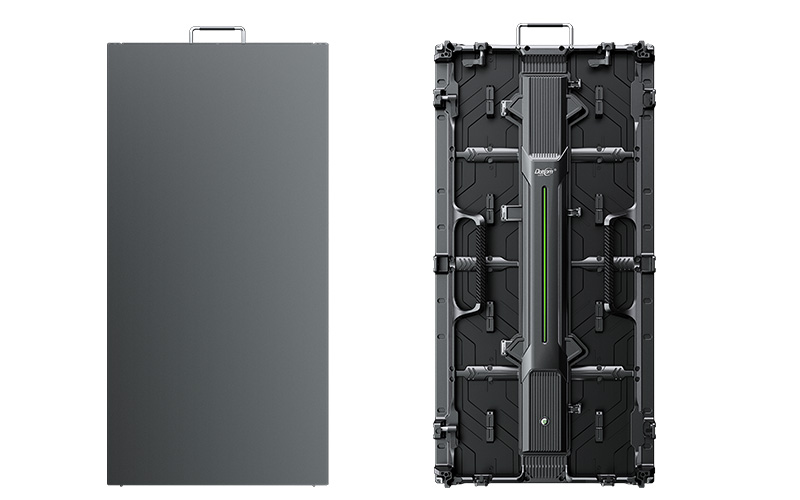

   Cabinet 2
   Dimensions(w*h)(mm)	500*1000*75mm	Module Quantity	8
   Resolution（W×H）	168*336	Pixels	56448
   Weight/panels(kgs)	12.5KG	Material	diecasting aluminum

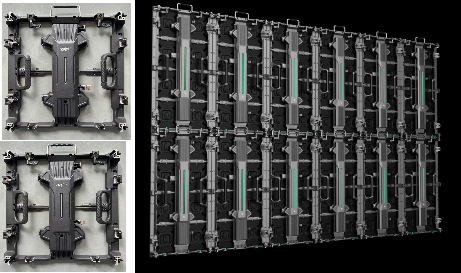

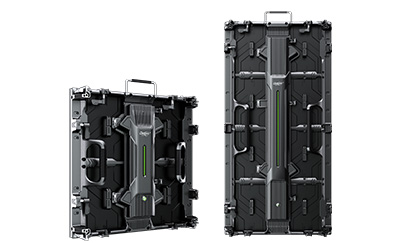

2. Solution : Aluminium cabinets 500*500mm, 500*1000mm.
