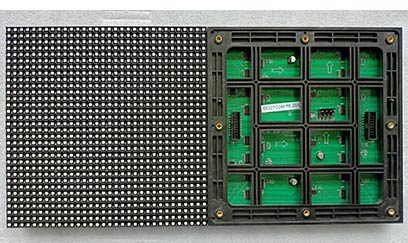

Outdoor SMD led display module

Outdoor SMD led display module

Outdoor SMD P3 ~ P10 led display module:

  • Pixel Pitch: 3 ~ 10 mm
  • Led: SMD1921 / SMD2727 / SMD3535
  • IP Grade: IP65
  • Refresh Rate: 1920 Hz
  • Brightness: 4500 ~ 6500 nits

Feature:

  • Fully waterproof design, widely used for outdoor led display.
  • High brightness.
  • 20%-30% energy saving, longer lifespan.
  • With double latch ic, provide more vivid image.
Outdoor led display module:

Model Name 　 　 　 　 　 Unit
Pixel Pitch P3 P3.91 P4 P4 P4.81 mm
Module Size 192*192 250*250 256*128 320*160 250*250 　
Module Resolution 64*64 64*64 64*32 80*40 52*52 　
Scan mode 1/16 1/16 1/8 1/10 1/13 　
Led  SMD 1921 SMD 1921 SMD 1921 SMD 1921 SMD 1921 nits
Brightness 4500 4500 6500 4500 4500 　
Maintenance way Rear Access Rear Access Rear Access Rear Access Rear Access hz/s
Refresh Rate 1920 1920 1920 1920 1920 deg
Viewing Angle 160/120 160/120 160/120 160/120 160/120 w/㎡
Max Power consumption/
Average Power consumption		 800/200 850/650 800/550 850/650 850/650 　
Gray Scale 10-16bits 10-16bits 10-16bits 10-16bits 10-16bits 　
Contrast Ratio `3000：1 `3000：1 `3000：1 `3000：1 `3000：1 　
IP Grade IP65 IP65 IP65 IP65 IP65 　


Model Name 　 　 　 　 　 　 　
Pixel Pitch P5 P6 P6.67 P8 P8 P10 Unit
Module Size 320*160 192*192 320*160 256*128 320*160 320*160 mm
Module Resolution 64*32 32*32 48*24 32*16 40*20 32*16 　
Scan mode 1/8 1/8 1/6 1/4 1/5 1/2 　
Led  SMD 2727 SMD 3535 SMD 3535 SMD 3535 SMD 3535 SMD 3535 　
Brightness 6000 5500 6000 6000 5500 6500 nits
Maintenance way Rear Access Rear Access Rear Access Rear Access Rear Access Rear Access 　
Refresh Rate 1920 1920 1920 1920 1920 1920 hz/s
Viewing Angle 160/120 160/120 160/120 160/120 160/120 160/120 deg
Max Power consumption/
Average Power consumption		 730/520 870/620 780/500 850/550 780/500 1000/750 w/㎡
Gray Scale 10-16bits 10-16bits 10-16bits 10-16bits 10-16bits 10-16bits 　
Contrast Ratio `3000：1 `3000：1 `3000：1 `3000：1 `3000：1 `3000：1 　
IP Grade IP65 IP65 IP65 IP65 IP65 IP65 　
