Small Pitch led display - 300x400 Series

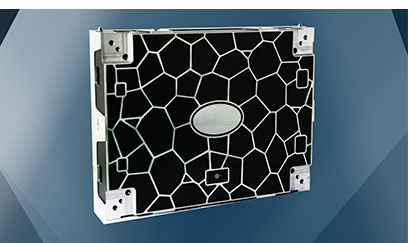

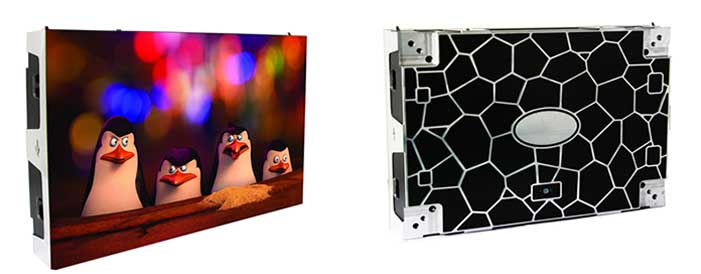

Small Pitch led display - 300x400mm cabinet:

  • Pixel Pitch: 1.25/1.56/1.667 mm
  • Brightness: 500 nits
  • Cabinet Weight: 5.2 kg
  • Cabinet Size: 300 x 400 mm
  • Refresh Rate: >3840 Hz
  • Application: Used for high end meeting room, broadcast, TV station, control room, etc.

This 300x400 small Pitch led display designed light and slim. which is specially for indoor fixed led display. Compared with other similar product, provide you a better visual enjoyment, realize seamless splicing. We always manufacturing and selling various HD 4K small pixel pitch led display, led tv display panel, big screen HD tv, led video wall screen.


Feature:

  • Golden Ratio, 4:3 cabinet design.
  • High brightness, high gray scale, high refresh rate 3840hz/s refresh rate, 5000:1 contrast ratio, up to 500 nits brightness
  • High precision, diecasting aluminum cabinet, seamless splicing
  • Wide view angle, 160 degrees.
  • Fully front access, all components taken from front.
  • Super slim and light, thickness:60mm, weight: 5.2kgs.
  • Endergy saving, low power.

Application:

  • Used for high end meeting room, broadcast, TV station, control room, etc.


Pixel Pitch P1.25 P1.5625 P1.667 Unit
Module Size 200*150 200*150 200*150 mm
Module Resolution 160*120 128*96 120*90 dots
Scan mode 1/60 1/32 1/32
Led  SMD 1010 SMD 1515 SMD 1515
Brightness 500 500 500 nits
Cabinet Size(W*H*D) 400*300*60 400*300*60 400*300*60 mm
Cabinet Resolution 320 *240 256 *192 240*180 dots
Cabinet material Die casting aluminum Die casting aluminum Die casting aluminum
Cabinet Weight 5.2 5.2 5.2 kgs
Density 640000 409800 360000 pixel/sqm
Maintenance way Fully front Access Fully front Access Fully front Access
Refresh Rate 3840 3840 3840 hz/s
Viewing Angle 160/160 160/160 160/160 deg
Max Power consumption/
Average Power consumption
500/100-280 500/100-280 500/100-280 w/㎡
Gray Scale 16bits 16bits 16bits
Contrast Ratio `5000:1 `5000:1 `5000:1
IP Grade( Front/ Rear) IP35 IP35 IP35
