Small Pitch led display - 640x480 Series


640x480 HD Small Pitch led display:

  • Pixel Pitch: 1.53/1.86/2.0 mm
  • Brightness: 500 cd/m2
  • Ultra HD perfect picture quality, exclusive visual feast.
  • Contrast with Low Brightness and High Grayscale
  • Wide View Angle, Smooth Image Display

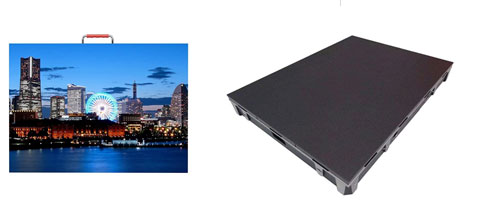

  • Super slim and light
  • Support hanging, stacking, wall mounted installation.

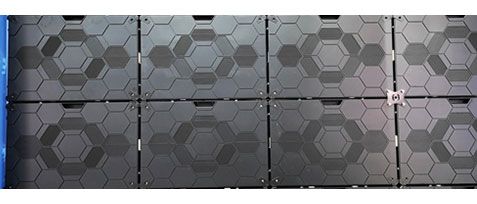

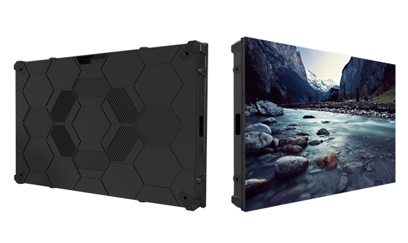

This Small Pitch led display - 640x480 Series cabinet designed light and slim, which is specially used for indoor fixed led display. Compared with other similar product, provide you a better visual enjoyment, realize seamless splicing. We always manufacturing and selling various HD 4K small pixel pitch led display, led tv display panel, big screen HD tv, led video wall screen.


  1. Diecasting magnesium alloy cabinet, Super slim and light, thickness: 74mm, weight: 7.35kgs;

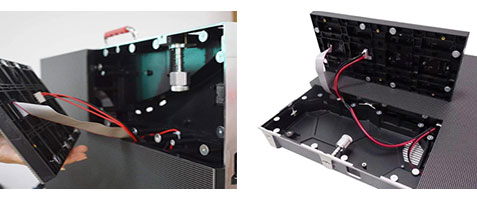

  2. Fully front access: All components are front accessible;

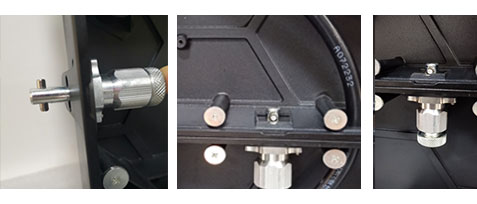

  3. Fast Installation / Maintenance: Fast lock & handle for easy operation;

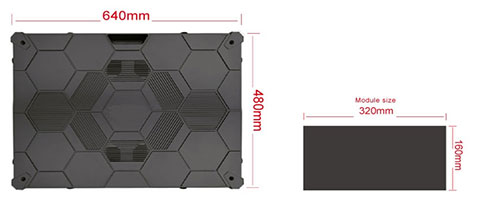

  4. Stanard cabinet size, suitable for 320*160mm standard size modules.
  5. Built-in wiring design for tidy looking and space saving.
  6. High refresh rate, high contrast, high brightness.

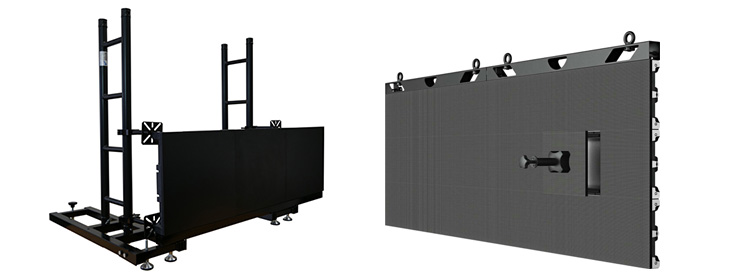

  7. Support hanging, stacking, wall mounted installation.

Application:

  • Used for high end meeting room, broadcast, TV station, control room, etc.

Pixel Pitch P1.25 P1.53 P1.667 P1.86 P1.904 P2 Unit
Module Size 320*160 320*160 320*160 320*160 320*160 320*160 mm
Scan mode 1/32 1/26 1/32 1/43 1/52 1/40
Led SMD 1010 SMD 1010 SMD 1010 SMD1515 SMD1515 SMD1515
Brightness 500 500 500 500 500 500 nits
Cabinet Size(W*H*D) 640*480*74 640*480*74 640*480*74 640*480*74 640*480*74 640*480*74 mm
Cabinet Resolution 512*384 416*312 384 *288 344*256 336*252 320*240 dots
Cabinet Weight 7.35 7.35 7.35 7.35 7.35 7.35 kgs
Maintenance way Front Access Front Access Front Access Front Access Front Access Front Access
Refresh Rate 3840 3840 3840 3840 3840 3840 hz/s
Viewing Angle 160/120 160/120 160/120 160/120 160/120 160/120 deg
Max Power consumption/
Average Power consumption
900/300 800/200 800/200 800/200 800/200 800/200 w/㎡
Gray Scale 16bits 16bits 16bits 16bits 16bits 16bits
Contrast Ratio `4000:1 `4000:1 `4000:1 `4000:1 `4000:1 `4000:1
IP Grade IP30 IP30 IP30 IP30 IP30 IP30
