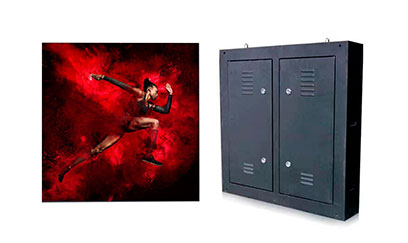

outdoor DIP P16 led advertising board

---

Outdoor digital advertising DIP led billboard & sign, Often used in outdoor commercial advertising, It has excellent brightness and high water resistance, keeps the display content visible even if facing the strong sunshine directly. Support full color, single color and two color customization, and the cabinet size, material and pixel pitch also support customization.

---

Feature:

• Easy to install, Light weight.
• Good heat dissipation.
• Power saving compared with common products.
• Using high reflesh IC, better viewing effect.
• Easy serivice and front maintenance.
• DIP encapsulation, High and adjustable brightness.
• Great waterproof, anti-uv, stable performance, resistant to harsh environment.
• Constant current driving, high reliability & high stability.
• Wide viewing angle, long viewing distance applicable, Horizontal angle 140 degree/elevation angle 140 degree.

---

Parameter of DIP series
Pixel Pitch	P16	Unit
Module Size	256*256	mm
Scan mode	1/1
Led	DIP346
Brightness	7500	nits
Cabinet Size(W*H*D)	1024*1024*140mm ( customized by modulue size)	mm
Cabinet Resolution	64*64	dots
Cabinet material	steel/ aluminum
Cabinet Weight	41	kgs
Maintenance way	Rear
Refresh Rate	3840	hz/s
Viewing Angle	160/120	deg
Max Power consumption/ Average Power consumption	1000/400	w/㎡
Gray Scale	16bits
Contrast Ratio	`3000：1
IP Grade	IP54/IP65( Front/ Rear)

---

LED Video Wall Mounting:

Single Pole LED Advetising Board Mounting:

---

Project Picture:
