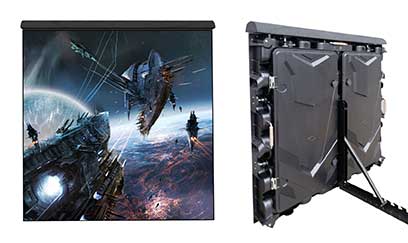

| Parameter of perimeter led screen | ||
| Pixel Pitch | P8 | Unit |
| Module Size | 320*160 | mm |
| Scan mode | 1/5 | |
| Led | SMD3535 | |
| Brightness | 6000 | nits |
| Cabinet Size(W*H*D) |
960*960*140mm ( customized by modulue size) |
mm |
| Cabinet Resolution | 120*120 | dots |
| Cabinet material | diecasting magnesium alloy | |
| Cabinet Weight | 24.2 | kgs |
| Maintenance way | Rear | |
| Refresh Rate | 3840 | hz/s |
| Viewing Angle | 160/120 | deg |
|
Max Power consumption/ Average Power consumption |
840/590 | w/㎡ |
| Gray Scale | 16bits | 16bits |
| Contrast Ratio | `3000：1 | `3000：1 |
| IP Grade | IP54/IP65( Front/ Rear) | IP54/IP65( Front/ Rear) |
DOTCOM has a team with innovation, professionalism and strong sense of responsibility, the company’s main products include indoor / outdoor fixed installation led display and rental led display, the products are widely used in advertising media, shopping malls, stage background, stadiums, municipal engineering and other fields. Through a few years’ effort, we have won some markets in the United States, Germany, France, Russia, Turkey, Iran,Dubai, Brazil, Chile, India and Southeast Asia etc.
