Corner led screen - square column led screen

Corner led screen - square column led screen

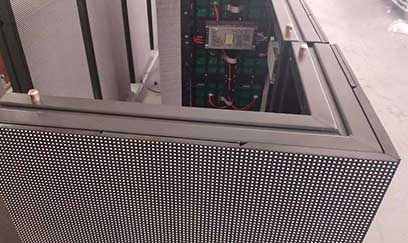

Corner led screen iron cabinet:

  • Outdoor waterproof, IP65.
  • High brightness for outdoor advertising.
  • High efficiency cooling system for heat dissipation.
  • Front service access, all components are front available, space saving.
  • Bevel edge panel design for seamless splicing right angle corner screen.

Feature:

  • Front service access, easy to do maintenance.
  • Creative corner design , eye catching advertising.
  • Wide viewing angle.
  • High refresh rate for good displaying effect.
Diecasting corner led screen Parameter:

Pixel Pitch P2.604 P2.976 P3.91 P4.81 Unit
Module Size 250*250 250*250 250*250 250*250 mm
Module Type 45 degree backshell 45 degree backshell 45 degree backshell 45 degree backshell 　
Scan Mode 1/32 1/28 1/16 1/13 　
Led SMD1515 SMD2020 SMD2020 SMD2020 　
Brightness 1000 1000 1000 1000 nit
Cabinet Size(W*H*D) 500*500*90 500*500*90 500*500*90 500*500*90 mm
Cabinet Resolution 192*192 168*168 128*128 104*104 　
Cabinet Material Die casting aluminum Die casting aluminum Die casting aluminum Die casting aluminum 　
Cabinet Weight 7.75 7.75 7.75 7.75 kgs
Maintenance way Front/Rear Access Front/Rear Access Front/Rear Access Front/Rear Access 　
Refresh Rate 3840 3840 3840 3840 hz
Viewing Angle 160/120 160/120 160/120 160/120 deg
Max/Average
Power consumption		 600/200 600/200 600/200 600/200 w/㎡
Gray Scale 16bits 16bits 16bits 16bits 　
Contrast Ratio `4000：1 `4000：1 `4000：1 `4000：1 　
IP Grade
(Front/Rear)		 IP30 IP30 IP30 IP30 　


Iron corner led screen Parameter:

Pixel Pitch P5 P6 P8 P10 Unit
Module Size 320*160 192*192 320*160 320*160 mm
Scan mode 1/8 1/8 1/5 1/2 　
Led  SMD2727 SMD3535 SMD3535 SMD3535 　
Brightness 5500 5000 6000 7000 nits
Cabinet Size(W*H*D) （960+960）*960*140mm
( customized by modulue size)		 （960+960）*960*140mm
( customized by modulue size)		 （960+960）*960*140mm
( customized by modulue size)		 （960+960）*960*140mm
( customized by modulue size)		 mm
Cabinet Resolution （192+192)*192 (160+160) *160 (120+120)*120 (96+96)*96 dots
Cabinet material steel/ aluminum steel/ aluminum steel/ aluminum steel/ aluminum 　
Cabinet Weight 62 62 62 62 kgs
Maintenance way Front Access Front Access Front Access Front Access 　
Refresh Rate 1920 1920 1920 1920 hz/s
Viewing Angle 140/120 140/120 140/120 140/120 deg
Max Power consumption/
Average Power consumption		 730/510 780/550 840/590 970/690 w/㎡
Gray Scale 16bits 16bits 16bits 16bits 　
Contrast Ratio `3000：1 `3000：1 `3000：1 `3000：1 　
IP Grade IP54/IP65( Front/ Rear) IP54/IP65( Front/ Rear) IP54/IP65( Front/ Rear) IP54/IP65( Front/ Rear) 　
