PR Series - TSKT P3 outdoor led display Module

pr series ourdoor led wall

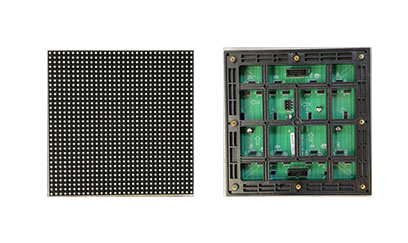

TSKT P3 outdoor led display Module:

  • High brightness, 4500-6500 nits
  • High contrast ratio, good video performance.
  • High refresh rate, 3840hz/s refresh rate, no flash.
  • Wide view angle, 160 degrees, can have best view in different position.
  • Light weight, easy to assemble and disassemble.
  • Good quality lamp ,PC backshell and PCB design.

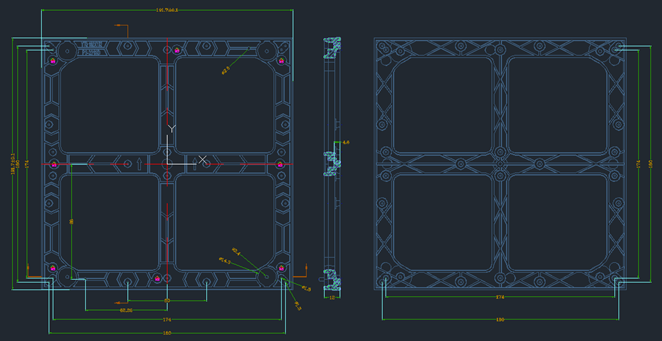

Module Hole Bitmap：

Remark: The unit is mm；Profile tolerance is ±0.1mm, diameter tolerance is ±0.1mm. DIECASTING CABINET DRAWING

Specification:

　 Pixel Pitch 3.0 mm Pixel Density 111.111Dots/㎡
　
　 Configuration 1R1G1B Resolution 64*64=4096Dots
　 Size 192.0*192.0*16mm SMD 1921 0.48kg±0.05kg
　 (Width*height*Depth)
　 Structure Led and IC in the Plastic Kit Polycarbonate
Module same PCB material
　 Input Voltage(DC) 5±0.1V Maximum Current 6A±0.3A
　 Power Consumption ≤30W Driving method Constant Current
　 1/16 Scan
　 Brightness 4500-6500cd/㎡ Brightness Uniformity ＞0.95
　 Viewing   　 　   　
Display Screen angle-Horizontal 140 ±10 degree Viewing angle-Vertical 120 ±10 degree
　 Best Viewing Distance 3.0-15 m Black spot Ratio < 0.0003
　 Max Power ≤820W/㎡ Average Power 　
　 Consumption 　 ≤400W/㎡
　 　 Consumption 　
　 Operation environment 　 　 　
　 outdoor IP grade IP65
　 Gray Scale 14-16bits Display Color 4398 billion
　 Frame Frequency ≥60 frames/sec Refresh Frequency ≥3840 Hz
　 　 Computer-controlled 　 　
　 　 ,point-by-point, correspondingly, online video 　 　
　 Control Mode 　 Brightness adjustment 256-grade manual
　 　 　 　 /automatic
　 　 ≥100,000 hrs Average Time   　 ≥10,000 hrs
　 Life Span: Failure Free
　 Attenuation ≤15％ 　 -10％---90％RH
　 (3 years later) Operating Humidity
　 　 DVI/VGA, Video (multiple formats) RGBHV, Composite video signal 、
Input Signal S-VIDEO
　 YpbPr (HDTV)
　 Cabinets Size: 960*960, 960*768, 960*576, 960*384 (mm),… can be installed to suit any specific size. suitable for all screen sizes.
