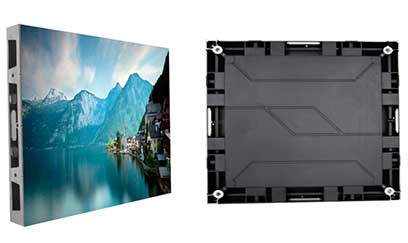

Small Pitch led display - 480x480 Series


Small Pitch led display - 300x400mm cabinet:

  • Pixel Pitch: 1.579/1.875/2.5 mm
  • Brightness: 500 nits
  • Cabinet Weight: 5.5 kg
  • Cabinet Size: 480 x 480 mm
  • Refresh Rate: >3840 Hz
  • Application: Used for high end meeting room, broadcast, TV station, control room, etc.

This 480x480 small Pitch led display series designed light and slim. which is specially for indoor fixed led display. Compared with other similar product, provide you a better visual enjoyment, realize seamless splicing. We always manufacturing and selling various HD 4K small pixel pitch led display, led tv display panel, big screen HD tv, led video wall screen.


Feature:

  • Golden Ratio, 1:1 cabinet design.
  • High brightness, high gray scale, high refresh rate 3840hz/s refresh rate, 5000:1 contrast ratio, up to 500 nits brightness
  • High precision, diecasting aluminum cabinet, seamless splicing
  • Wide view angle, 160 degrees.
  • Fully front access, all components taken from front.
  • Super slim and light, thickness:60mm, weight: 5.5kgs.
  • Endergy saving, low power.

Application:

  • Used for high end meeting room, broadcast, TV station, control room, etc.

Pixel Pitch P1.579 P1.875 P2.5 Unit
Module Size 240*120 240*240 240*240 mm
Module Resolution 152*76 128*128 96*96 dots
Scan mode 1/38 1/64 1/48
Led  SMD 1515 SMD 1515 SMD 2020
Brightness 500 500 500 nits
Cabinet Size(W*H*D) 480*480*50 480*480*50 480*480*50 mm
Cabinet Resolution 304 *304 256*256 192*192 dots
Cabinet material Die casting aluminum Die casting aluminum Die casting aluminum
Cabinet Weight 5.5 5.5 5.5 kgs
Density 401111 284444 160000 pixel/sqm
Maintenance way Fully front Access Fully front Access Fully front Access
Refresh Rate 3840 3840 3840 hz/s
Viewing Angle 160/160 160/160 160/160 deg
Max Power consumption/
Average Power consumption
500/100-280 500/100-280 500/100-300 w/㎡
Gray Scale 16bits 16bits 16bits
Contrast Ratio `5000:1 `5000:1 `5000:1
IP Grade( Front/ Rear) IP35 IP35 IP35
